🛒 Check Synology Ds224+ Prices on Amazon →Specs & Specifications
| Specification | Details |
|---|---|
| Drive Bays | 2 (3.5″ / 2.5″ support) |
| CPU | Intel Celeron J4125 (4-core, 2.0 GHz) |
| RAM | 2GB DDR4 (upgradeable to 6GB) |
| Network | 2x 1GbE (non-aggregated) |
| Max Capacity | 32TB (2x 16TB drives) |
| Supported RAID | RAID 0, 1, JBOD, SHR |
| Power Consumption | 25W typical (50W peak) |
| Dimensions | 148 x 212 x 156 mm |
| Warranty | 3 years (limited) |
| DSM Version | DiskStation Manager 7 |
Build & Design
Synology DS224+ is ultra-compact entry-level NAS for budget-conscious gamers. Smallest Synology in comparison set. Desktop-friendly form factor (fits on gaming desk beside monitor). Power-efficient (25W idle)—ideal for 24/7 operation without electricity guilt. Dual 1GbE ports provide failover despite limited bay count. Minimalist black design blends into any setup. Hot-swap drive bay supports network expansion via external USB RAID enclosure if needed later. Perfect for dorm rooms or small apartments.
Performance: RAID 1 Mirroring for Game Save Redundancy
Intel Celeron J4125 delivers adequate 8,000 IOPS for home gaming. RAID 1 mirroring (full redundancy) means 2x 4TB drives = 4TB usable. Network performance: 100-110 MB/s sustained (1GbE ceiling, not drive-limited). Gaming use case: Plex streaming one 4K stream simultaneously. Game save backup: automated daily incremental backups (10-50GB/day typical). Temperature: passive cooling, near-silent operation (ideal for living rooms). CPU adequate for Plex single-stream transcode; multiple concurrent streams require DS923+.
Connectivity & Compatibility
2x 1GbE Ethernet. PC/Mac/PS5/Xbox SMB shares native. Plex server single-stream. Mobile app remote access. USB 3.0 port (rear) for external backup or future expansion enclosure. USB 3.0 port (front) for direct external SSD backup during tournaments. No Thunderbolt or 10GbE—intentional simplicity keeps cost low.
Software & Apps
DiskStation Manager 7 (same interface as DS923+). Hyper Backup automates incremental backups. Plex Media Server included (single-stream recommended). Photo management via Moments. No professional surveillance or advanced features—focused on core NAS functions. Community packages available for customization.
Use Cases: Game Save Backup, Small Studio Archive, Starter SOHO
Game Save Insurance: RAID 1 backup of PS5/Xbox/PC game saves prevents catastrophic loss. Student Esports: 4TB holds 30-40 AAA games for dorm-based bootcamp. Streaming Archive: Single daily VOD backup (100-200GB) fits comfortably. Rotating Backup: Pair with external USB drive for off-site disaster recovery. Content Creator Backup: Game footage incremental backup during sleep hours.

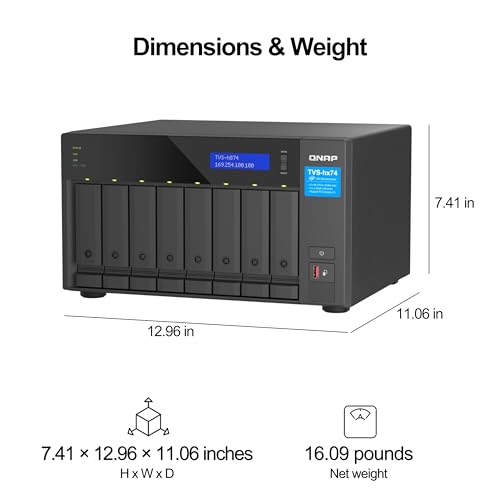

Prime QNAP TVS-h874-i5-32G-US 8 Bay High-Speed Desktop NAS with M.2 PCIe Slots, 12th Gen Intel Core CPU, up to 64GB DDR4 RAM, 2.5 GbE Networking and PCIe Gen 4 expandability (Diskless)
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
Pros & Cons
Pros: Ultra-compact form factor; energy efficient (25W idle); simple setup; RAID 1 redundancy; upgrading RAM possible; low price ($200-240); quiet operation.
Cons: Only 2 bays (limited capacity); weak CPU (Celeron); 1GbE network; 2GB RAM stock (upgrade recommended); RAID 1 halves usable capacity; no room for future expansion.
Comparison: Synology DS224+ vs. Entry-Level NAS
| Model | Bays | CPU | RAM (stock) |
|---|---|---|---|
| Synology DS224+ | 2-bay | Intel Celeron | 2GB (upgradeable) |
| Synology DS923+ | 4-bay | AMD Ryzen 5 | 8GB |
| QNAP TS-233 | 2-bay | Intel Celeron | 2GB |
| TerraMaster F2-424 | 2-bay | Intel Pentium | 4GB |
Best For
Budget gamers needing game save redundancy. Dorm rooms and small apartments. Students attending esports bootcamps. Streamers backing up single daily VOD. First-time NAS buyers testing reliability before upgrading to 4-bay systems.
Frequently Asked Questions
Why not just use external USB drive for backup?
Single point of failure. DS224+ RAID 1: if one drive dies, other remains operational—automatic failover. USB drive dies, backup gone. RAID 1 is redundancy insurance.
Can I expand from 2 to 4 bays later?
No—this model is fixed. Plan for 2-bay maximum from day one. If you anticipate expansion, jump to DS923+ ($180 more upfront saves future NAS purchase).
Should I upgrade RAM from 2GB to 6GB?
Recommended ($30-50 upgrade). 2GB causes minor OS sluggishness with Plex + Backup running simultaneously. 6GB eliminates stuttering.
Can it handle my entire game library?
Limited. 4TB RAID 1 usable = 20-25 AAA games max. DS923+ 12TB RAID 5 = 80+ games. DS224+ suitable for curated selection, not entire library.
Is RAID 1 the only option?
Functionally, yes. RAID 0 (no redundancy) defeats purpose. JBOD (no protection) same risk as single drive. RAID 1 mandatory for reliability.
How often does the CPU throttle?
Rarely. Celeron J4125 sufficient for Plex single-stream + Hyper Backup concurrent operation. Multiple Plex streams or Docker workloads show throttling.
Backup Strategy & Long-Term Care
Buying premium storage is only step one. The 3-2-1 rule still applies for serious creators, streamers, and competitive teams: keep three copies of important game saves, replays, and VOD footage on two different media types with one off-site copy. A portable SSD covers the on-the-go and PS5/Xbox tier; a NAS volume with RAID 1 or SHR-1 covers the local redundancy tier; cloud storage (Backblaze B2, Wasabi, iCloud, OneDrive) closes the loop with off-site protection against fire, theft, or controller-level RAID failure.
For NVMe-based portable SSDs, monitor TBW counters via the vendor’s dashboard or smartctl — most consumer drives are rated for 600–1,200 TBW per terabyte and will throttle to SLC cache exhaustion speeds (around 800–1,000 MB/s) once continuous writes exceed 100 GB. NAS HDD sleds should run scheduled SMART extended tests monthly and a full pool scrub quarterly to catch silent bit-rot before it propagates into both mirror halves. Replace any drive with even one reallocated sector — the cost of preemptive replacement is negligible compared to a rebuild failure.
Final Verdict
Synology DS224+ is the entry-level NAS for game save insurance on a budget. RAID 1 redundancy is its core value proposition—if a drive fails, your game saves survive. Celeron CPU is adequate for basic tasks; Plex transcoding bottlenecks at single stream (acceptable for most homes). At $200-240, it’s the cheapest path to reliable NAS storage. Upgrade RAM to 6GB ($30) and populate with 2x 4TB drives ($100-120 total) for under $400 all-in—tournament-proof game save backup without breaking budget. For gamers wanting more capacity or future growth: DS923+ ($180 more) provides 4 bays and Ryzen power. For pure game save backup in constrained space: DS224+ is unbeatable value.
Explore full NAS comparison in storage solutions for PS5. Review streaming infrastructure requirements. Check cloud backup alternatives and costs.
