The Creative Sound Blaster Audigy RX 7.1 is a mid-range PCIe internal sound card that brings 7.1 analog surround output, optical S/PDIF, a 600-ohm headphone amplifier and Creative’s SBX Pro Studio audio processing to desktop PCs. It is the step up from the Audigy FX for buyers who want more channels and optical I/O on a permanent internal card. This Sound Blaster Audigy RX 7.1 review covers the form factor, sound quality, connectivity, use cases and value as a 7.1 internal sound card.
Prime Creative Sound Blaster Audigy PCIe RX 7.1 Sound Card with High Performance Headphone Amp
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
Sound Blaster Audigy RX 7.1 at a Glance
| Feature | Specification |
|---|---|
| Type | PCIe x1 internal sound card (full-height bracket) |
| Bit depth / sample rate | 24-bit / 192kHz stereo, 24-bit / 96kHz 7.1 |
| DAC chip | Creative-tuned 24-bit / 192kHz converter (Audigy RX class) |
| Headphone amp output power | Built-in amp rated to drive headphones up to 600 ohms |
| Inputs | 1x 3.5mm mic, 1x 3.5mm line-in, 1x optical (TOSLINK) input |
| Outputs | 4x 3.5mm analog (front / centre+sub / rear / side) for 7.1, 1x optical out |
| Channel count | 7.1 analog surround out |
| Power source | PCIe slot bus power, no external connector |
| Approx price | around $80 |
Sound Quality & DAC Chip Performance
Before diving into the specifics of this product it is worth a brief refresher on the three technical decisions that shape every external audio device review: form factor (USB dongle, desktop DAC, PCIe internal sound card or USB audio interface), DAC chip and conversion quality (the digital-to-analog converter that turns the PC’s bitstream into a real audio signal), and headphone amplification (the small built-in amplifier that drives the headphones from the analog output). A USB dongle DAC like the UGREEN USB-C adapter or the Sabrent USB sound adapter is a tiny device that plugs straight into a USB port and adds a 3.5mm headphone output; it is small, cheap and ideal for laptops or PCs missing a working audio jack. A desktop DAC such as the iFi Zen DAC V2, FiiO K5 Pro or Fosi Audio Q4 sits beside the monitor on the desk, runs from external power or USB, and pairs a higher-quality DAC chip with a more capable headphone amplifier — the typical step up for audiophile listeners and demanding gaming headsets.
A PCIe internal sound card like the Creative Sound Blaster Audigy FX or Audigy RX 7.1 installs into a desktop PC’s PCIe slot, replaces the motherboard’s onboard audio, and is the traditional route for buyers who want surround-sound output, line-level inputs and a permanent solution that does not occupy a USB port. A USB audio interface like the Focusrite Scarlett Solo 3rd Gen is a desktop box that combines a high-quality DAC, headphone amp and one or more microphone preamps with phantom power — the standard tool for content creators recording vocals, instruments or podcasts at studio quality. The choice of form factor depends entirely on use case: dongles for portability, desktop DACs for listening, PCIe cards for desktop integration and surround output, and audio interfaces for recording.
Two practical points round out the refresher. First, headphone impedance matters. Easy-to-drive consumer headphones (most gaming headsets, earbuds and 32-ohm cans) work well from any output, including a phone jack. Harder-to-drive audiophile headphones (250-ohm or 600-ohm models from Beyerdynamic, Sennheiser HD600 series, planar magnetics from HiFiMan) benefit substantially from a dedicated headphone amp inside a desktop DAC — they reach proper listening volume with cleaner dynamics and tighter bass. Second, onboard motherboard audio is better than it used to be, so the upgrade is most worthwhile if you have demanding headphones, noticeable interference (buzz, hiss, coil whine on the analog output), or specific needs like a clean microphone input or surround output. Keep these three decisions in mind — they decide more about whether a sound card or DAC is right for you than the marketing on the box.
The Audigy RX is built on Creative’s mid-range desktop sound-card silicon — a 24-bit / 192kHz converter for stereo and 24-bit / 96kHz for 7.1 surround. Sound is honest and cleaner than typical onboard motherboard audio, with a lower noise floor and better channel separation in surround output. The Audigy RX is a ‘legacy 7.1 surround’ device in the sense that modern PC audio has largely moved to Windows Sonic, Dolby Atmos for Headphones and HDMI-passthrough surround — but for buyers who already own a 7.1 analog speaker system, or who want a permanent multi-channel output without occupying a USB port, the Audigy RX continues to do the job well. It is not in the same audiophile listening class as a desktop DAC like the iFi Zen DAC V2 or FiiO K5 Pro, but for desktop 7.1 surround at the price, it is well judged.
Headphone Amp Power & Impedance Matching
Creative specifies the Audigy RX’s headphone output as capable of driving headphones up to 600 ohms — the same generous figure as the Audigy FX, and a strength for owners of higher-impedance audiophile headphones. Plug 250-ohm Beyerdynamic DT 770 Pro or 300-ohm Sennheiser HD600/650 into the front jack and they reach proper listening levels with reasonable headroom. The amp is not as authoritative as the Xamp inside the Sound BlasterX G6, and a dedicated desktop DAC like the FiiO K5 Pro is a step up on pure listening, but in the context of a multi-purpose PCIe card the headphone amp is a genuine inclusion rather than an afterthought.
Connectivity & I/O
The Audigy RX’s I/O is its main selling point versus the cheaper Audigy FX. The rear bracket carries four 3.5mm output jacks (front L/R, centre + subwoofer, rear L/R, side L/R) for full 7.1 analog surround, plus an optical S/PDIF output for connecting to an external amplifier or receiver, plus a 3.5mm microphone input and a 3.5mm line-in. There is also an optical input on some revisions. This combination supports legacy analog 7.1 speaker systems (Logitech Z906 in analog 7.1 mode, for example), modern optical digital output to a receiver, and a line-in for recording from cassette decks, vinyl pre-amps and similar analog sources. For a permanent desktop solution, the connectivity covers most plausible use cases.
Gaming / Music / Streaming Use Cases
The Audigy RX has three main use cases. (1) Legacy 7.1 speaker systems: existing owners of analog 7.1 PC speakers (Logitech Z906 in some configurations, Creative Inspire T7900) drive all eight channels from one card. (2) Optical-out to a home theatre receiver: route PC audio via optical S/PDIF to a separate amplifier, useful for living-room PCs and HTPCs. (3) Recording from analog sources: the line-in jack captures from cassette decks, vinyl pre-amps and external mixers for digitisation. SBX Pro Studio offers virtual surround over stereo headphones for users who do not have a 7.1 speaker set. For pure music headphone listening, the FiiO K5 Pro or iFi Zen DAC V2 are more refined; for surround output, the Audigy RX is targeted at exactly this use case. See also our best PC speakers guide.
Setup & Compatibility

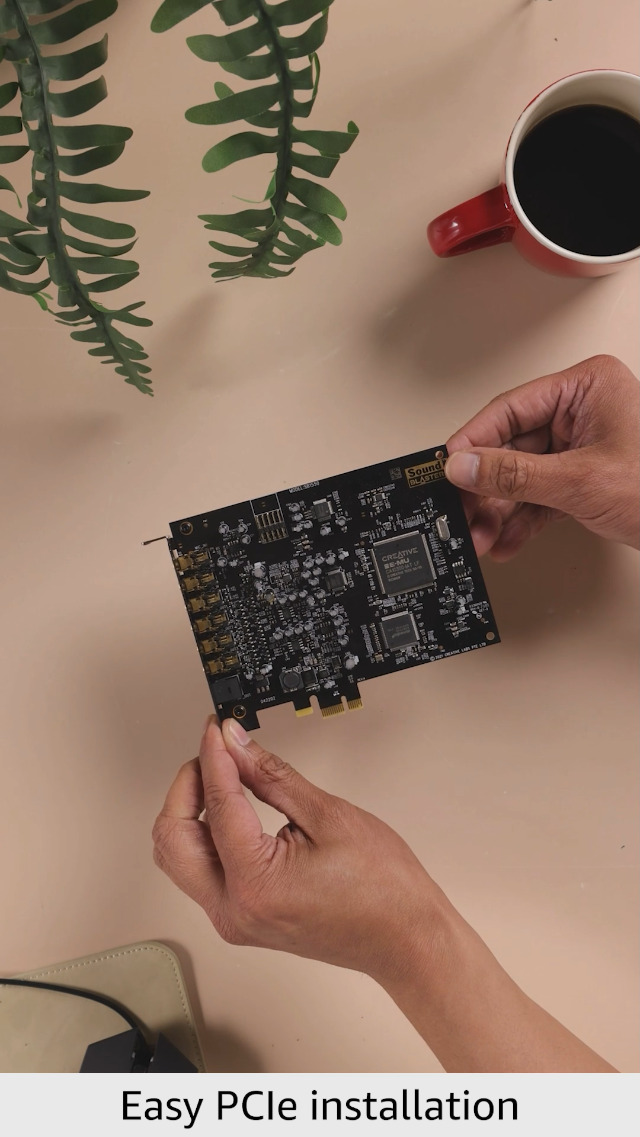

Installation requires opening the PC case and seating the card in a free PCIe x1 slot — straightforward on any modern desktop, but not an option on laptops or small-form-factor systems without expansion. The card uses a full-height bracket; low-profile slim cases need a different solution (the Audigy FX has a low-profile version). Driver installation runs from Creative’s Sound Blaster Command package on Windows 10/11. Linux support is limited; the card works with snd-emu10k1-class drivers on common distributions but advanced features remain Windows-only. Once installed, the card takes over from onboard audio as the default device.
Verdict
For around $80 the Sound Blaster Audigy RX 7.1 is a sensible upgrade for a specific buyer — a desktop PC owner with an existing analog 7.1 speaker set, a need for optical S/PDIF out, or a desire for line-in recording. It is not a modern USB DAC, it is not appropriate for laptops, and it is not the right choice if pure headphone listening quality is the priority (where the FiiO K5 Pro or iFi Zen DAC V2 excel). But for traditional desktop 7.1 surround output as a permanent internal card, the Audigy RX does the job cleanly. For 5.1 only at a lower price, see the Audigy FX; for external flexibility see the Sound BlasterX G6.
Frequently Asked Questions
Does the Audigy RX support 7.1 surround?
Yes. The card has four 3.5mm output jacks for front, centre + sub, rear and side channels — the full 7.1 analog layout — plus an optical S/PDIF output for external receivers.
Will the Audigy RX work with my Windows 11 PC?
Yes. Creative maintains current Windows 11 drivers, downloadable via the Sound Blaster Command software.
Can the Audigy RX drive 250-ohm headphones?
Yes. Creative rates the headphone output to drive headphones up to 600 ohms, which covers all common audiophile impedances.
Does the Audigy RX have line-in for recording?
Yes. The rear bracket includes a 3.5mm line-in jack for capturing from external analog sources like cassette decks, vinyl pre-amps and mixers.
