The Corsair Frame 4500X RS ARGB is a new-generation ATX mid-tower that brings Corsair’s design language firmly into the panoramic-glass era. Priced in the upper-mid tier it combines tempered glass on the front and side with three pre-installed RS ARGB fans, all wrapped around a frame-style modular layout. It is Corsair’s answer to the modern showcase-airflow hybrid that has reshaped the mid-tower segment.
Updated October 2026 – specifications cross-checked against Corsair and published case reviews.
Corsair Frame 4500X Review: Quick Verdict
In this Corsair Frame 4500X review, the verdict is that the Frame 4500X RS ARGB is a strong choice for a showcase build: curved panoramic glass, three pre-installed 120mm RS ARGB fans and 360mm radiator support. Its weak point is intake, because the front is glass rather than mesh.
- Buy it if: you want a build on display with solid, but not class-leading, cooling.
- Skip it if: you want maximum airflow per dollar; a mesh-front case such as the Corsair 5000D Airflow runs cooler for less.
π Best Price Today on Amazon
Prime members get fast, free shipping on everything above, plus member-only deals. New members get a 30-day free trial β cancel anytime.
As an Amazon Associate we earn from qualifying purchases.
Corsair Frame 4500X RS ARGB at a Glance
| Component | Specification |
|---|---|
| Form factor | ATX mid-tower |
| Motherboard support | ATX, Micro-ATX, Mini-ITX |
| Dimensions | Standard ATX mid-tower |

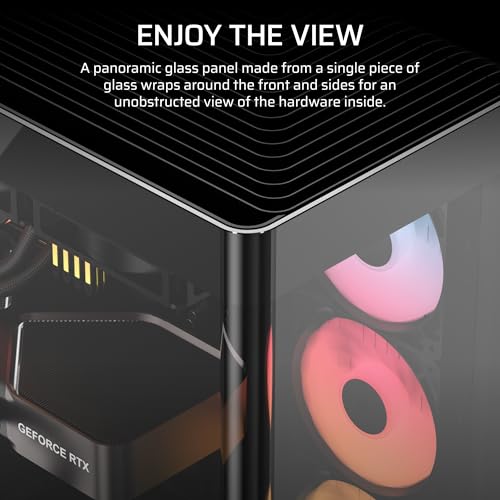

| Side panel | Panoramic tempered glass (front + side) |
| GPU clearance | Up to about 460mm per published specifications |
| Cooler clearance | Air coolers up to about 185mm; 360/280mm radiators on top and side |
| Pre-installed fans | 3x RS ARGB |
| Front I/O | Standard Corsair front-panel set |
| Price | Upper-mid tier (check current listings) |
Design and Aesthetics
The Frame 4500X is the most visually arresting of Corsair’s current core mid-tower line. The panoramic tempered glass wraps from the front around to the side, giving an almost showroom-style view of the interior. The three pre-installed RS ARGB fans glow through the glass on the intake side, and the result is one of the more dramatic looks Corsair has produced at this price point.
Despite the showy panoramic treatment, Corsair has resisted the temptation to add gamer ornamentation. The case lines remain clean, the branding is restrained and the chassis still looks at home in a professional setup. The panoramic format is genuinely effective: the build inside the case is the centrepiece, and the case itself acts as a frame in the literal sense of the line’s name. It is a confident, modern look.
Build Quality and Materials
Steel and tempered glass dominate the Frame 4500X, with the panoramic glass section being a substantial design statement in its own right. Corsair specifies the case to a higher standard than the basic mid-tier, and the build quality reflects that β panels sit flush, the glass is properly mounted and the chassis is reassuringly rigid. At its upper-mid price it sits above the mainstream tier but the construction supports the position.
Build details are thoughtful: dust filtering covers the inlet areas, internal layout is rationalised and the small things β screw quality, fan mounts, cable cutout finishing β feel like they have been engineered rather than left to chance. The Frame 4500X is the kind of case that feels expensive in handling, which is increasingly important as buyers push higher up the case-budget ladder.
Airflow and Cooling Layout
The Frame 4500X is, despite the panoramic glass, designed first as an airflow chassis. The three pre-installed RS ARGB fans handle intake on the airflow-friendly side of the case, with the panoramic glass deliberately oriented to showcase the lit-up fans rather than obstruct them. Corsair’s framing approach again allows for flexible top and rear fan placement to suit the builder’s preferences.
Radiator support is generous, with capacity for substantial AIO units in the standard positions. The Frame 4500X is therefore not a case that compromises cooling for looks β a common pitfall of older panoramic designs. Builders can install a high-end Ryzen or Intel system inside the chassis without thermal anxiety, and the three included PWM ARGB fans mean the cooling baseline is already strong out of the box.
Component Compatibility and Cable Management
The case accepts ATX, Micro-ATX and Mini-ITX motherboards and supports the long graphics cards modern enthusiast builds expect. Cooler clearance is broad, AIO mounting positions are flexible and PSU placement is conventional. Despite the panoramic glass, Corsair has not compromised on the basics of build compatibility, which is a common failing in early panoramic designs.
Cable management is unusually important on a panoramic case because so much of the build is visible. Corsair recognises this and provides a generous routing area behind the motherboard tray, plenty of tie-down points and properly placed cutouts. Even a moderate effort at cable management will produce a clean front view through the panoramic glass, which is the entire point of the design. Experienced builders can produce a showpiece interior.
Corsair Frame 4500X RS ARGB Specifications and Clearances
| Spec | Detail |
|---|---|
| Motherboards | Mini-ITX, Micro-ATX, ATX and E-ATX; BTF-capable |

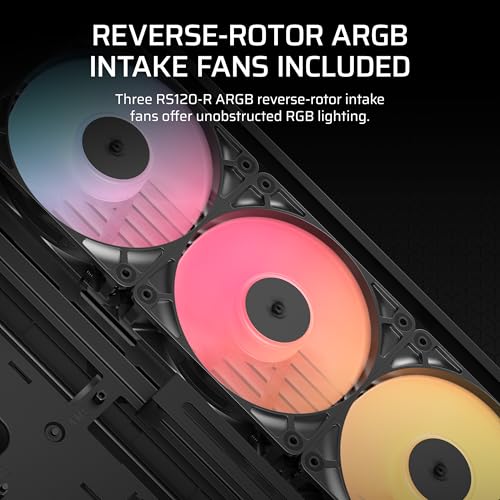

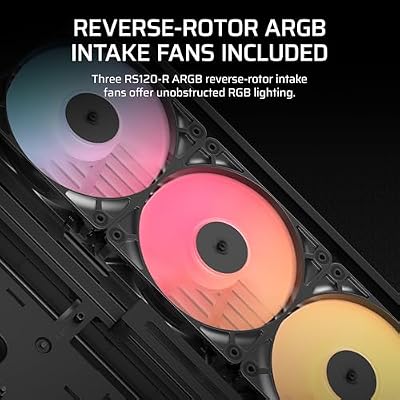

| Fans included | 3x 120mm RS ARGB PWM on the side |
| Radiators | Up to 360/280mm on top and side; 120/140mm at the rear; none at the front |
| GPU clearance | About 460mm, with an anti-sag bracket in the box |
| CPU cooler height | About 185mm |
| Storage | 2x 2.5in or 1x 3.5in internal |
| Front I/O | 2x USB-A 3.2 Gen 1, 1x USB-C 3.2 Gen 2, combo audio |
| Colors | Black and white |
Confirm exact figures on the Corsair product page for the variant you buy, as RS ARGB, RS-R and LX versions differ in fan connectors and lighting control.
Frame 4500X Airflow and Temperatures: What Reviewers Report
Does the Frame 4500X run cool? Yes, with caveats: published reviews show sensible CPU and GPU temperatures under load, but the glass front means the three side fans are the only built-in intake.
- Add exhaust: fit a rear and top fan to balance the pressure; a top-mounted 360mm radiator works well as exhaust.
- Use the side: a side-mounted 360mm AIO benefits from the fresh air path through the panoramic glass section.
- Leave room for cables: a clean build matters because every wire is visible through the glass.
Frame 4500X vs 4000D RS ARGB vs 5000D Airflow
| Case | Best for | Airflow | Look |
|---|---|---|---|
| Corsair Frame 4500X RS ARGB | Showcase builds, 360mm AIOs | Good with added exhaust | Panoramic glass front and side |
| Corsair 4000D RS ARGB Frame | Value builds, simple layout | Good | Single glass side panel |
| Corsair 5000D Airflow | Cool-running builds, easy cable routing | Very good | Mesh front, glass side |
For most buyers the decision comes down to looks versus temperatures: choose the Frame 4500X for the view, and the 5000D Airflow for the lowest temperatures.
Who Is the Corsair Frame 4500X RS ARGB For?
The Frame 4500X is for the buyer who wants the modern panoramic-glass aesthetic without leaving the Corsair ecosystem. It suits enthusiast Ryzen 7, Core i7 or Core i9 builds where the system is intended to be on display, and the three RS ARGB fans plus the panoramic glass ensure the build is genuinely seen. Its upper-mid price is justified by the design and build.
It is less suited to buyers who want a calmer, more discreet case or who simply need maximum cooling per dollar without the showcase glass. For the very common buyer who wants their next high-end build to look distinctly modern and to remain on the Corsair side of the brand divide, the Frame 4500X is one of the more compelling options of its generation.
Pros and Cons
Pros: Panoramic tempered glass front and side; three RS ARGB pre-installed fans; side-mounted fans and 360mm radiator support despite the glass-heavy design; refined Corsair build quality; broad component compatibility.
Cons: Premium price compared with conventional mid-towers; panoramic format puts cable management on display; no front intake because the front is glass; not the cheapest cooling per dollar.
Is the Corsair Frame 4500X RS ARGB Worth It?
At its upper-mid price the Corsair Frame 4500X RS ARGB delivers a genuinely modern panoramic look together with credible airflow and the build quality buyers expect of Corsair. For the enthusiast who wants their high-end system seen as well as run cool, the case is one of the more complete propositions in its price tier, and the three included RS ARGB fans take care of most of the cooling baseline.
Buyers happy with a non-panoramic format can secure similar cooling for less from Corsair’s own 4000D family, but they will not get the same showcase appeal. For the buyer specifically attracted to the panoramic aesthetic and unwilling to compromise on construction, the Frame 4500X earns a confident recommendation.
Frequently Asked Questions
Does the Corsair Frame 4500X RS ARGB have panoramic glass?
Yes. The Frame 4500X uses tempered glass on the front and side, giving an unbroken panoramic view of the interior.
How many fans come pre-installed with the Frame 4500X RS ARGB?
Three RS ARGB fans are pre-installed, which delivers a strong cooling and lighting baseline straight out of the box.
Is the Frame 4500X a good airflow case despite the glass?
Reasonably. The three fans sit on the side and the front is glass, so intake is more limited than in a mesh-front case, but 360mm radiator support keeps it a credible host for modern Ryzen and Intel builds.
How does the Frame 4500X differ from the 4000D RS ARGB?
The Frame 4500X uses a panoramic tempered glass front and side for a more dramatic showcase look, while the 4000D RS ARGB uses a more conventional single-side glass approach.
Is the Corsair Frame 4500X worth buying in 2026?
Yes, if you want a panoramic showcase case from a major brand with 360mm radiator support. If temperatures matter more than looks, a mesh-front case is the better buy.
Does the Frame 4500X support E-ATX and 360mm radiators?
Yes. Published specifications list E-ATX support up to about 267mm board width and 360/280mm radiators on the top and side, but no radiator mounts on the glass front.
Which fans does the Frame 4500X RS ARGB include?
It includes three 120mm RS ARGB PWM fans mounted on the side. The RS ARGB version uses the standard 3-pin ARGB connector, while the LX variants use iCUE LINK.
