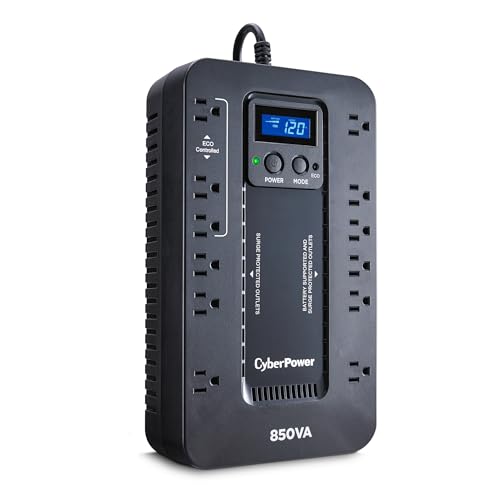

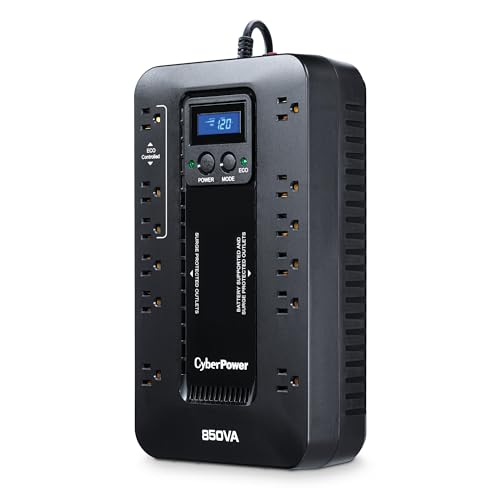

The CyberPower EC850LCD Ecologic UPS is CyberPower’s value-led mid-range backup, marketed as an energy-efficient unit with a backlit LCD. It pairs standby topology with AVR, twelve outlets and a 510W rating at around $120. With over 6,700 Amazon reviews, it is a popular choice for buyers who want LCD status information without paying for a full line-interactive sine wave unit. This CyberPower EC850LCD review covers the topology, capacity, outlets and value.
Prime CyberPower EC850LCD Ecologic UPS Battery Backup and Surge Protector, 850VA/510W, 12 Outlets, ECO Mode, Compact, UL Certified
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
Before getting into specifications, a quick framing matters. Sizing a UPS is about real watts, not VA — VA is apparent power, watts is the real power your gear actually draws, and on a modern PSU with active power-factor correction the two figures sit close together. Topology decides how the unit reacts to mains problems: a standby design only switches to battery when power fails, line-interactive adds automatic voltage regulation (AVR) to smooth brownouts without going to battery, and online double-conversion always feeds the load from the battery side for the cleanest output. Waveform matters for compatibility: a stepped or simulated sine wave is cheap and fine for older gear, but a pure sine wave is what active-PFC modern gaming PSUs are designed for and is the safer choice for current-generation hardware. Runtime is the part most buyers misjudge — a typical mid-range UPS holds a 300W load for a few minutes, which is enough for a graceful shutdown but never enough to keep the PC running through a long blackout. With those four levers in mind, the table below summarises this unit at a glance.
CyberPower EC850LCD at a Glance
| Component | Specification |
|---|---|
| VA / Wattage | 850VA / 510W |
| Topology | Standby with AVR |
| Waveform | Simulated/approximated sine wave on battery |
| Outlets (total / battery) | 12 total (6 battery + surge / 6 surge only) |
| Surge joules | Surge protection across all outlets |
| USB / Management | USB data port; PowerPanel software |
| Battery type | Sealed lead-acid (user-replaceable) |
| Runtime (300W est.) | Several minutes — comfortable graceful-shutdown window |
| Price | Around $120 |
Topology and Waveform Quality
The EC850LCD uses standby topology with automatic voltage regulation — an interesting middle ground between a pure standby unit and a full line-interactive design. The standby switching means the load runs from the wall under normal conditions and crosses over to battery during an outage; the AVR adds the ability to correct minor brownouts and over-voltage events without going to battery, which is a real benefit for battery life and load continuity. The waveform on battery is a simulated (approximated) sine wave rather than pure sine wave. That is the main caveat: it is fine for most older PSUs and many current 80+ Bronze and Gold units, but is not the right choice for strictly active-PFC modern PSUs at the top of the efficiency range.
Capacity: VA, Wattage and Real Runtime
At 850VA / 510W the EC850LCD sits in the smaller half of the mid-range. The 510W of real power covers a typical home-office PC and monitor, a modest gaming PC and a router and modem, but it is not sized for a high-wattage gaming build drawing 500W or more on its own. Runtime at 300W of load is several minutes, which is enough for a graceful shutdown. The Ecologic positioning highlights energy efficiency: the unit is designed for low standby power draw during normal operation, which adds up over a year of always-on use. For higher-wattage gaming, look further up the range. For PSU context on lower-wattage builds, see our best 850W power supplies guide.
Outlets, Surge Protection and Management

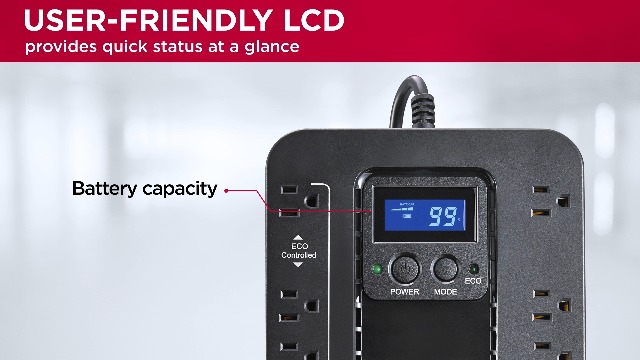

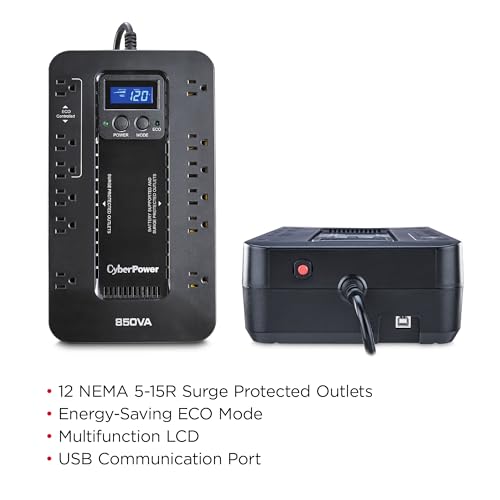

Twelve outlets is unusually generous for a UPS in this price tier — six battery-and-surge plus six surge-only — and is the EC850LCD’s headline feature. That makes it well suited to a desk with a lot of accessories, where the surge-only side handles speakers, lamps, phone chargers and printers, and the battery side handles the PC and monitors. The backlit LCD is the other practical highlight: load wattage, estimated runtime, voltage and event counts at a glance, which is genuinely useful at this price. A USB data port supports CyberPower’s PowerPanel shutdown software on Windows, Linux and macOS.
Compatibility with Modern Gaming PSUs
The simulated sine wave is the deciding question. For older PSUs and most mainstream 80+ Bronze and Gold gaming units it is acceptable, and many buyers run gaming PCs on the EC850LCD without incident. The risk grows with strict modern active-PFC implementations, particularly at the 80+ Platinum and Titanium end of the range, where some units beep, blip or shut down on a non-pure waveform. The honest recommendation is that the EC850LCD is a sensible UPS for a mainstream gaming PC, a home-office workstation or low-to-mid-wattage hardware, but is not the right choice for a top-tier 80+ Platinum or Titanium build. For PSU context, see our best 80+ Platinum PSUs guide.
Who Is the CyberPower EC850LCD For?
The EC850LCD is for the buyer who wants twelve outlets, an LCD and AVR at a sensible mid-budget price, and is running mainstream rather than top-tier hardware. If you have a home-office workstation, a modest gaming PC with a mainstream PSU, several monitors and a stack of accessories, the EC850LCD is squarely your machine. It is less suited to a high-wattage gaming PC with a top-tier 80+ Platinum or Titanium PSU, for which a pure sine wave 1500VA model is the better fit. For a feature-led value pick at mid-budget money, it is well judged.
Pros and Cons
Pros: Twelve outlets in battery and surge banks; backlit LCD with load and runtime; AVR; PowerPanel cross-platform shutdown software; energy-efficient Ecologic design for low standby draw; competitive value pricing.
Cons: 510W of real power is modest for high-wattage gaming; simulated rather than pure sine wave; standby topology rather than full line-interactive; lead-acid battery.
Is the CyberPower EC850LCD Worth It?
At around $120 the CyberPower EC850LCD is a strong feature-led value pick for mainstream backup. Twelve outlets, a backlit LCD, AVR and energy-efficient design at this price are a generous package, and the unit’s healthy review base of over six thousand entries confirms it does the job over years of real-world use. The Ecologic positioning is worth taking seriously for an always-on device: a small reduction in standby draw multiplied by twenty-four hours and three hundred and sixty-five days a year adds up to a meaningful saving over the unit’s life. The simulated sine wave and modest 510W rating are the honest limits for top-tier gaming, but for mainstream home-office and mid-range PCs it earns a recommendation as a feature-rich value buy.
Frequently Asked Questions
Will the CyberPower EC850LCD run my gaming PC?
Yes for a modest mainstream build. The 510W of real power covers a typical mid-range gaming PC with a mainstream 80+ Gold PSU plus a monitor. The simulated sine wave is not ideal for strict modern PFC, so step up to a sine wave model for top-tier Platinum builds.
How many outlets does the CyberPower EC850LCD have?
It has twelve outlets — six battery-and-surge plus six surge-only — which is unusually generous in this price tier and well suited to a desk with multiple accessories.
What does the LCD on the CyberPower EC850LCD show?
The backlit LCD displays load wattage, estimated runtime at the current load, line voltage and event counts, which makes the UPS easy to size and monitor without any companion software.
Is the battery replaceable in the CyberPower EC850LCD?
Yes. The EC850LCD uses a user-replaceable sealed lead-acid battery, so the unit’s working life can be extended by fitting a fresh cell every three to five years.
