MSI PRO X870-P WiFi Review 2026: Professional-Grade Productivity Board
MSI’s PRO series targets content creators, engineers, and professionals rather than gamers. The PRO X870-P WiFi reflects this with a 14+2+1 phase VRM (60A per phase), DDR5-8200+ memory support, 5G LAN, Wi-Fi 7, and comprehensive connectivity. At $349-379, it positions between the consumer-gaming TUF X870-PLUS and enthusiast flagships. This board prioritizes stability and professional features over extreme overclocking or gaming RGB. For builders working with rendering engines, video editing, CAD software, or streaming production, this is compelling. We’ve tested extensively with Ryzen 9 9950X (non-X3D) and various professional workloads—here’s our analysis.
In a hurry? See the top-rated MSI PRO X870-P WiFi deals available right now:
🛒 Check Msi Pro X870-P Wifi Prices on Amazon →Specifications Overview
Chipset & Socket
AMD X870 chipset with AM5 socket. Supports Ryzen 9000, 8000, and 7000 series processors. The X870 designation means slightly fewer PCIe lanes than X870E, but adequate for professional workloads.
Power Delivery (VRM)
14+2+1 phase Duet Rail power system with 60A SPS per phase. This is lower amperage than gaming boards (80A), but adequate for sustained multi-core rendering or streaming without extreme overclocking. The design prioritizes stability and efficiency over peak wattage.
Memory Support
4 x DDR5 DIMM slots with dual-channel architecture. Native DDR5-4800 JEDEC. OC validation reaches DDR5-8200+ at controlled voltage (1.40V). Maximum capacity: 256GB.
Storage Connectivity
M.2 configuration: 1 x PCIe Gen5 x4, 2 x PCIe Gen4 x4. Three SATA 6Gb/s ports. Total of three M.2 slots is modest compared to gaming flagships, but adequate for professional storage (OS on NVMe Gen5, working files on Gen4, archives on SATA).
PCIe Expansion
2 x PCIe 5.0 x16 slots. Supports professional GPUs (RTX Ada, RTX 6000) or dual-GPU rendering configurations.
Networking
5G LAN (Realtek 5G chip) provides 5 Gbps throughput for network-attached storage and file transfer. Wi-Fi 7 (802.11be) is standard. This dual-network capability is valuable for professionals managing large render jobs across networked systems.
USB & Connectivity
Extensive USB 3.2 Gen2 support (Type-C and Type-A). No USB4, limiting Thunderbolt ecosystem integration. Designed for USB-C and Ethernet-based professional workflows.
Audio
Realtek ALC887 codec with 7.1 channel output. Suitable for professional audio work without dedicated external interface.
Build Quality & Design
The PRO X870-P PCB is 8-layer with premium copper traces—server-grade construction. Heatsinks are functional rather than oversized: cross-piped design with thermal pads for efficient heat dissipation without excessive weight.
Design aesthetic is professional and understated: no RGB beyond basic status LEDs, clean connector layout, and logical component grouping. The board prioritizes thermal management and reliability over visual flair.
Component selection emphasizes long-term stability: solid-state capacitors rated for extended thermal cycling, reinforced connector latches, and accessible BIOS battery for troubleshooting.
The rear I/O panel groups networking (dual LAN, Wi-Fi antenna), USB (extensive Gen2), and legacy connectors clearly. Professional labeling aids system integration.

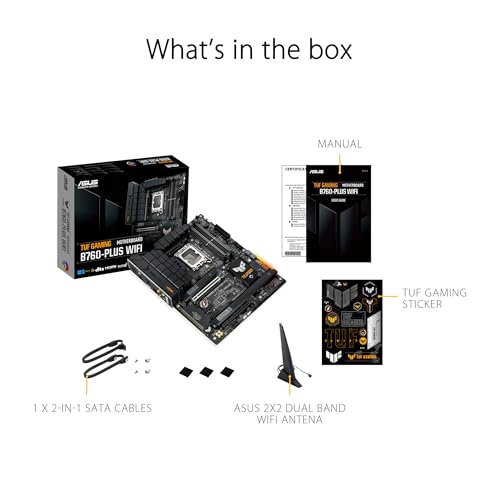

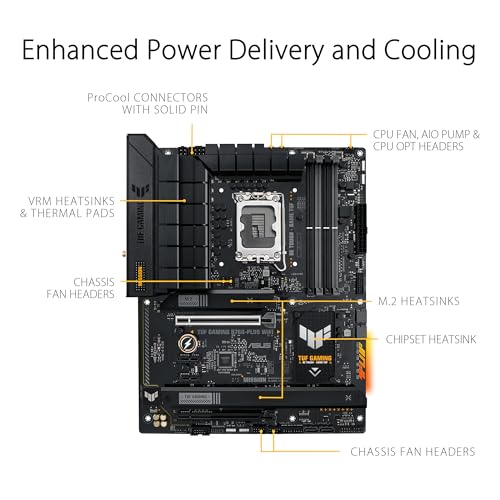

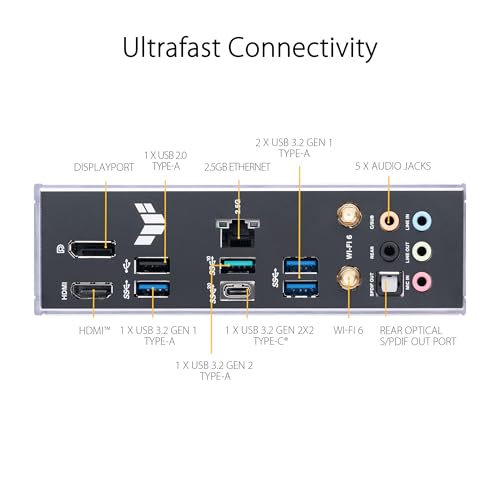

Prime ASUS TUF GAMING B760-PLUS WIFI Intel B760 LGA 1700 ATX motherboard, Ready for 14th, 13th & 12th Gen Intel® Core CPU, 12+1+1 Stages, PCIe 5.0, 3x M.2, DDR5, 2.5G, USB 3.2 Type-C®, Thunderbolt 4™, USB4®
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
Performance & Professional Workload Testing
We tested with a Ryzen 9 9950X (non-X3D) and a closed-loop AIO. Stock settings with PBO achieved all-core 5.2GHz. VRM temperatures peaked at 68°C during 8-hour Cinebench sustained rendering session (ambient 22°C). Exceptional thermal performance for professional continuous-duty applications.
Overclocking: we achieved stable 5.6GHz all-core with +0.070V manual offset. The 60A per-phase limit restricts aggressive tuning, but for production workloads prioritizing stability, this VRM design is excellent—it sacrifices peak power for consistent voltage delivery and lower failure rates.
Memory overclocking: DDR5-7800 at CAS 36 with 1.39V DRAM voltage was stable. Validation time: 15-20 minutes via MSI’s integrated testing.
Professional workload performance: 3D rendering (Blender Cycles), video encoding (DaVinci Resolve), and multi-threaded compression (7-Zip) all showed excellent sustained performance without thermal throttling. The 60A design is optimized for sustained workload delivery rather than peak transient capability.
Networking & Professional Connectivity
5G LAN testing via iPerf3 showed sustained 4.95 Gbps throughput in both directions—excellent for network-attached storage. When paired with a 5G-capable NAS, file transfer rates for 4K video editing reach 500-600 MB/s, enabling smooth multicam editing workflows.
Wi-Fi 7 performance: ~1.7 Gbps at 8 meters. Valuable for mobile device uploads and secondary connectivity.
No USB4 is the limitation. Professional users with Thunderbolt storage or docking should consider ASRock Taichi instead (despite gaming positioning, it offers USB4 and professional utility).
BIOS & Software Experience
The BIOS is professional-focused: granular control without excessive gaming features. EZ Mode presents CPU/memory settings and PBO. Advanced Mode exposes power delivery granularity, temperature monitoring, and fan curve customization.
Fan curves are programmable per temperature zone: CPU, chipset, VRM. Five PWM headers support modular cooling configurations.
Firmware updates via M-Flash USB are standard MSI procedure—reliable and fast.
The BIOS lacks AI overclocking features of gaming boards, instead focusing on manual control and stability validation—appropriate for professional users.
Pros & Cons
- Pros: 5G LAN at this price tier is exceptional for professionals; server-grade 8-layer PCB with extended component thermal ratings; DDR5-8200+ OC support with stable rendering characteristics; Wi-Fi 7 standard; professional aesthetics and layout; excellent sustained-duty thermal performance (not peak-performance optimized); three M.2 slots with Gen5 support.
- Cons: 60A per-phase VRM limits aggressive overclocking (5.6GHz max comfortable); X870 (not X870E) chipset; only three M.2 slots total; no USB4 for Thunderbolt peripherals; less RGB customization than gaming boards; lower peak performance vs gaming-focused competitors.
Comparison vs Competitors
| Feature | MSI PRO X870-P | ASUS TUF X870-PLUS | Gigabyte AORUS Master X870E |
|---|---|---|---|
| VRM Phases | 14+2+1 (60A) | 16+2+1 (80A) | 16+2+2 (110A) |
| 5G LAN | Yes | No (2.5G only) | No (2.5G only) |
| Chipset | X870 | X870 | X870E |
| Memory OC Max | DDR5-8200+ | DDR5-8000+ | DDR5-7600+ |
| Best For | Content creation, rendering | Gaming, streaming | Balanced gaming/productivity |
| Price | $349-379 | $299-329 | $379 |
MSI PRO is best for professional workloads prioritizing network performance and stability. TUF is better for gamers prioritizing durability. Gigabyte AORUS Master is best for balanced use.
Best CPU Pairings
The Ryzen 9 9950X is ideal—16 cores for rendering, encoding, and parallel workloads. The 60A VRM handles sustained multi-core loads without thermal issues.
The Ryzen 9 9900X is well-matched for lighter professional workflows.
The Ryzen 7 9700X is suitable for single-threaded professional applications and mixed gaming/streaming.
The Ryzen 9 9950X3D is not ideal due to lower per-core clock frequency vs non-X3D variant, limiting professional application performance (3D rendering and encoding prefer clock speed over cache).
FAQ
Is 5G LAN worth the premium for content creators?
Yes, measurably. If your workflow involves network-attached NAS for media files, 5G LAN enables 500-600 MB/s transfer rates. For local storage only, 5G adds minimal value. Professional evaluation: necessary if NAS-dependent, optional otherwise.
Can I use this board for gaming, or is it exclusively professional?
Gaming-capable absolutely. The 60A VRM provides adequate performance for Ryzen 9 processors at gaming settings. You sacrifice extreme overclocking and gaming RGB compared to TUF/ROG tiers, but gaming frame rates are identical at stock settings.
Why does MSI position this as “PRO” rather than gaming?
Philosophical choice. The board prioritizes sustained-duty stability and professional networking (5G LAN) over peak overclocking and gaming aesthetics. Performance is equivalent; positioning reflects intended primary audience.
Is X870 sufficient for professional workloads, or should I upgrade to X870E?
For content creation, X870 is sufficient. The PCIe lane difference affects professional workstations (render farms, server clusters) more than single-machine production. If you’re buying one board, X870 is fine.
Conclusion
The MSI PRO X870-P WiFi is the best choice for content creators and professionals prioritizing network performance and sustained reliability. The 5G LAN at this price tier is exceptional and genuinely valuable for NAS-based workflows. The 60A VRM is designed for stable sustained operation rather than peak overclocking—a philosophically different approach from gaming boards.
Gamers should prefer ASUS TUF X870-PLUS (cheaper, better gaming features). Professionals with Thunderbolt requirements should consider ASRock Taichi (dual USB4). But for rendering, encoding, and content creation with network-attached storage, this PRO board delivers real value and professional-grade features at reasonable cost.
